How to create Crystal Reports featuring barcode images using Typed DataSet in .NET Windows Forms
Product Barcode Professional for Windows Forms
Neodynamic Barcode Professional 3.0 (or greater) for Windows Forms (WinControl)
Microsoft .NET Framework 2.0 (or greater)
Microsoft Visual Studio 2005
Microsoft SQL Server 2005 (any version) with Northwind Database sample installed
Crystal Report for Visual Studio .NET 2005
In the following Step-By-Step Guide we're going to create a Crystal Report which features barcoding capabilities by using Barcode Professional for .NET Windows Forms and using as data source for the report a Typed DataSet.
Follow these steps:
- Open Visual Studio and create a new Windows Forms application naming it CrystalReportBarcodeDataSet.
- Add a new DataSet item to the project and name it Northwind.xsd

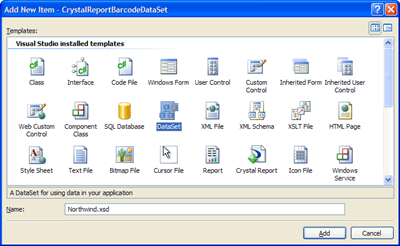

Adding a Typed DataSet
- Add a new TableAdapter to the DataSet (Right-clicking on the DataSet design surface and selecting Add > TableAdapter... or by dragging & dropping a TableAdapter from the Toolbox).

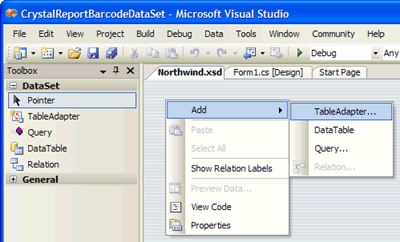

Adding a TableAdapter to the Northwind DataSet
Follow the wizard steps. In the first step, please create a connection to the Northwind SQL Server Database sample and click Next. In the second step, choose "Use SQL statements" and click Next. After that, please enter the following SQL Statement:
SELECT ProductID, ProductName, UnitPrice FROM Products

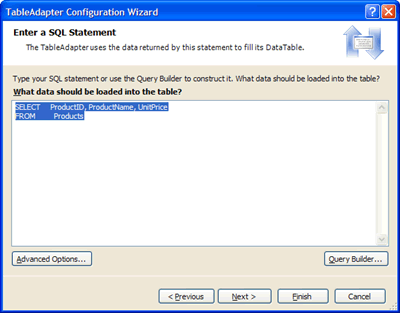

Specifying a SQL Statement that returns Northwind Product info
Click Finish to close the Wizard dialog box.
- After that, add a new custom Column to the DataTable just created and name it Barcode as is shown in the following figure

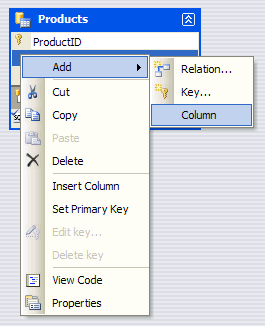

Adding a new Column to the DataTable for barcoding purpose
- Change the data type of the Barcode column to System.Byte (Array of Byte). NOTE: the System.Byte data type is not listed and thus why you must type it manually.

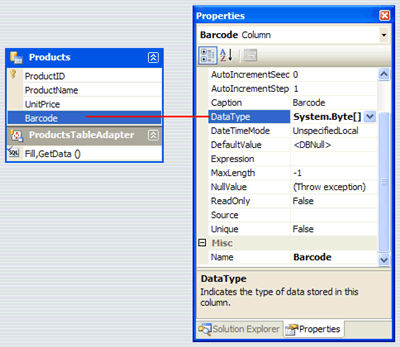

Setting up the Barcode Column to System.Byte data type
- Save the Northwind.xsd file.
- Now add a new Crystal Report item to the project and name it CrystalReportBarcode.rpt.

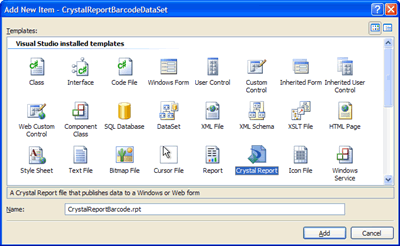

Adding a Crystal Report to the project
Click Add button. Next, choose "Blank Report" in the Crystal Report Gallery dialog box.

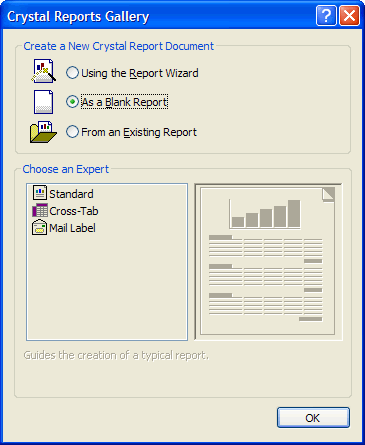

Creating a blank report
Click OK button.
- Launch Crystal Report Database Expert by going to Crystal Reports > Database > Database Expert...

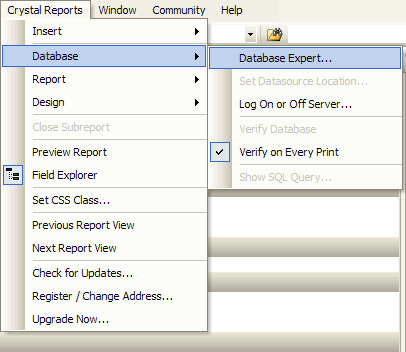

Opening Crystal Reports Database Expert dialog box
In the Database Expert dialog box select the Products DataTable (from the left pane) so it appears in the "Selected Tables" list (right pane) as is shown in the following figure.

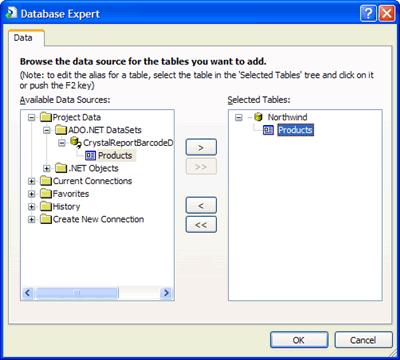

Choosing the Products DataTable as data source of the Crystal Report
Click OK button. After that, the Products DataTable should be available in the Field Explorer Window as is shown in the following figure. NOTE: To display the Field Explorer press Ctrl+Alt+T
The Products DataTable available in the Field Explorer
- Please design the report so it looks like the following figure. Just drag & drop the fields from the Field Explorer onto the report as is shown in the figure.

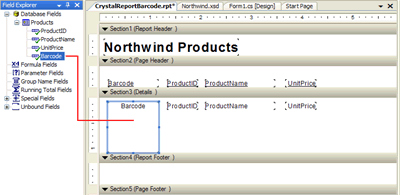

The barcode report layout
The most important field in our scenario is Barcode (Please DO NOT change the dimensions of such field on the report surface). Select the Barcode item on the report and right-clicking onto it select "Format Object" from the context menu to open the Format Editor dialog box. In that dialog box, please check Can Grow option and click OK button.

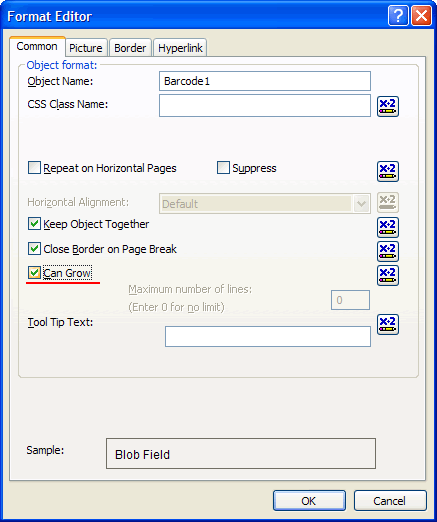

Setting up "Can Grow" option for the Barcode item in the Format Editor dialog box
- Save the report.
- Now Create/Open a Windows Form at design time and drag & drop a CrystalReportViewer control onto it.
- After that, from the Solution Explorer, add a reference to Barcode Professional for Windows Forms assembly: Neodynamic.WinControls.Barcodeprofessional.dll
- Write the following code in the Form_Load event procedure.
Private Sub Form1_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
'Filling Products DataTable from DB
Dim ta As New NorthwindTableAdapters.ProductsTableAdapter()
Dim dt As New Northwind.ProductsDataTable()
'Create an instance of Barcode Professional
Dim bcp As New Neodynamic.WinControls.BarcodeProfessional.BarcodeProfessional()
bcp.Symbology = Neodynamic.WinControls.BarcodeProfessional.Symbology.Code39
bcp.Extended = true
bcp.AddChecksum = false
bcp.BarHeight = 0.4f
'Append fictitious Company internal prefix
Dim prodPrefix As String = "12345"
Dim row As Northwind.ProductsRow
For Each row In dt.Rows
'Set the value to encode
bcp.Code = prodPrefix + row.ProductID.ToString()
'Generate the barcode image and store it into the Barcode Column
row.Barcode = bcp.GetBarcodeImage(System.Drawing.Imaging.ImageFormat.Png)
'Create a report object
'and set its data source with the DataSet
Dim report As New CrystalReportBarcode()
Me.CrystalReportViewer1.ReportSource = report
private void Form1_Load(object sender, EventArgs e)
//Filling Products DataTable from DB
NorthwindTableAdapters.ProductsTableAdapter ta = new NorthwindTableAdapters.ProductsTableAdapter();
Northwind.ProductsDataTable dt = new Northwind.ProductsDataTable();
//Create an instance of Barcode Professional
Neodynamic.WinControls.BarcodeProfessional.BarcodeProfessional bcp = new Neodynamic.WinControls.BarcodeProfessional.BarcodeProfessional();
bcp.Symbology = Neodynamic.WinControls.BarcodeProfessional.Symbology.Code39;
bcp.Extended = true;
bcp.AddChecksum = false;
bcp.BarHeight = 0.4f;
//Append fictitious Company internal prefix
string prodPrefix = "12345";
//Update DataTable with barcode image
foreach (Northwind.ProductsRow row in dt.Rows)
//Set the value to encode
bcp.Code = prodPrefix + row.ProductID.ToString();
//Generate the barcode image and store it into the Barcode Column
row.Barcode = bcp.GetBarcodeImage(System.Drawing.Imaging.ImageFormat.Png);
//Create a report object
//and set its data source with the DataSet
CrystalReportBarcode report = new CrystalReportBarcode();
this.crystalReportViewer1.ReportSource = report;
- That's it. Run your application. You should get the barcode images displayed on the report.

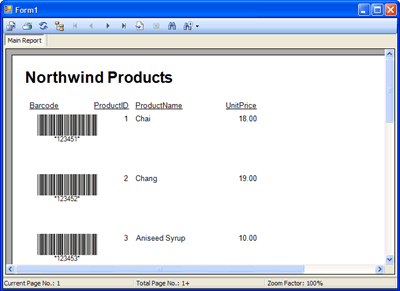

The Crystal Report featuring barcodes generated by Barcode Professional
CrystalReportViewer control lets you to export the displayed report to Acrobat PDF, Microsoft Excel XLS as well as other well know document formats. In all cases the barcode images are maintained.

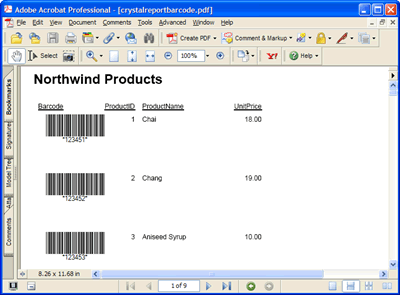

The Crystal Repor report in Acrobat PDF format featuring barcodes generated by Barcode Professional

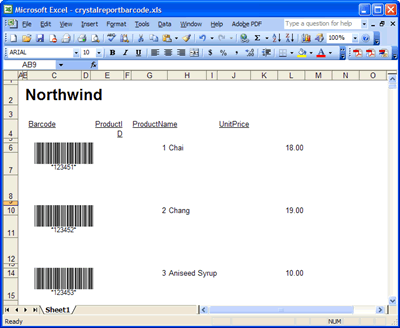

The Crystal Repor report in Microsoft Excel XLS format featuring barcodes generated by Barcode Professional
